📏 Shaft Measuring Solution

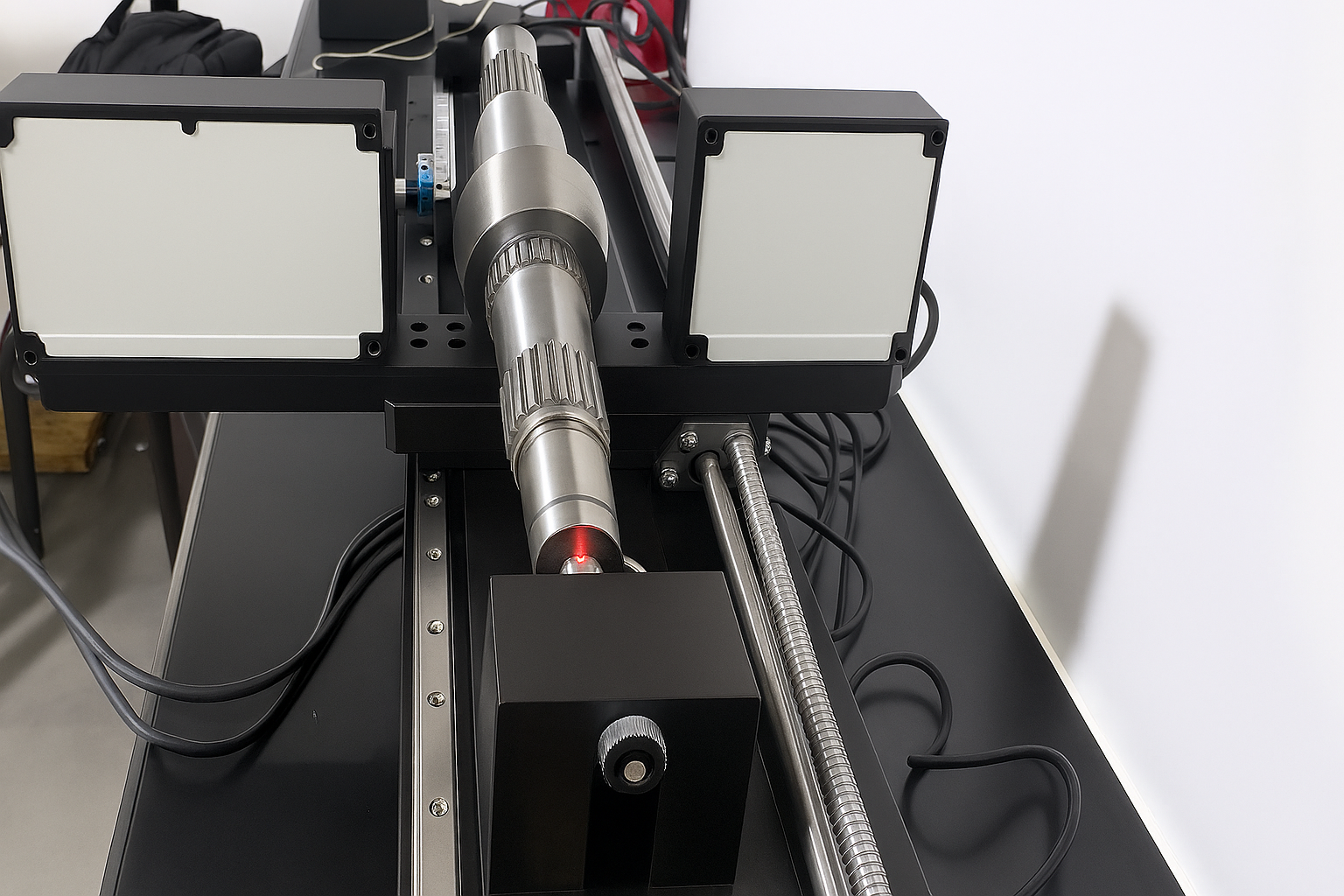

The Shaft Measuring Solution is an advanced precision measurement system designed for accurate inspection and quality control of cylindrical components and shafts. It ensures reliable measurement performance with high repeatability, making it ideal for precision engineering and industrial manufacturing applications.

⚙️ Measuring Parameters

• Average Diameter
• Maximum Diameter
• Minimum Diameter
• Ellipticity
• Jump
• Run-Out
• Other precision shaft measurements

⭐ Technical Specifications

🔹 Least Count

• 0.0001 mm

🔹 Accuracy at 25°C

• ± (0.5 + 10% D) micron
  (D = Measuring diameter in mm)

🔹 Repeatability at 25°C

• (0.3 + 5% D) micron
  (D = Measuring diameter in mm)

🔹 Run-Out Accuracy at 25°C

• ≤ 0.005 mm

📐 Machine Dimensions

• Foot Print (L × W × H):
  1000 mm × 200 mm × 350 mm
• Weight:
  50 Kgs.

🚀 Why Choose This Solution?

✔ Ultra-high precision measurement
✔ Excellent repeatability and accuracy
✔ Ideal for shaft inspection and quality control
✔ Compact and robust design
✔ Suitable for industrial and precision engineering applications
