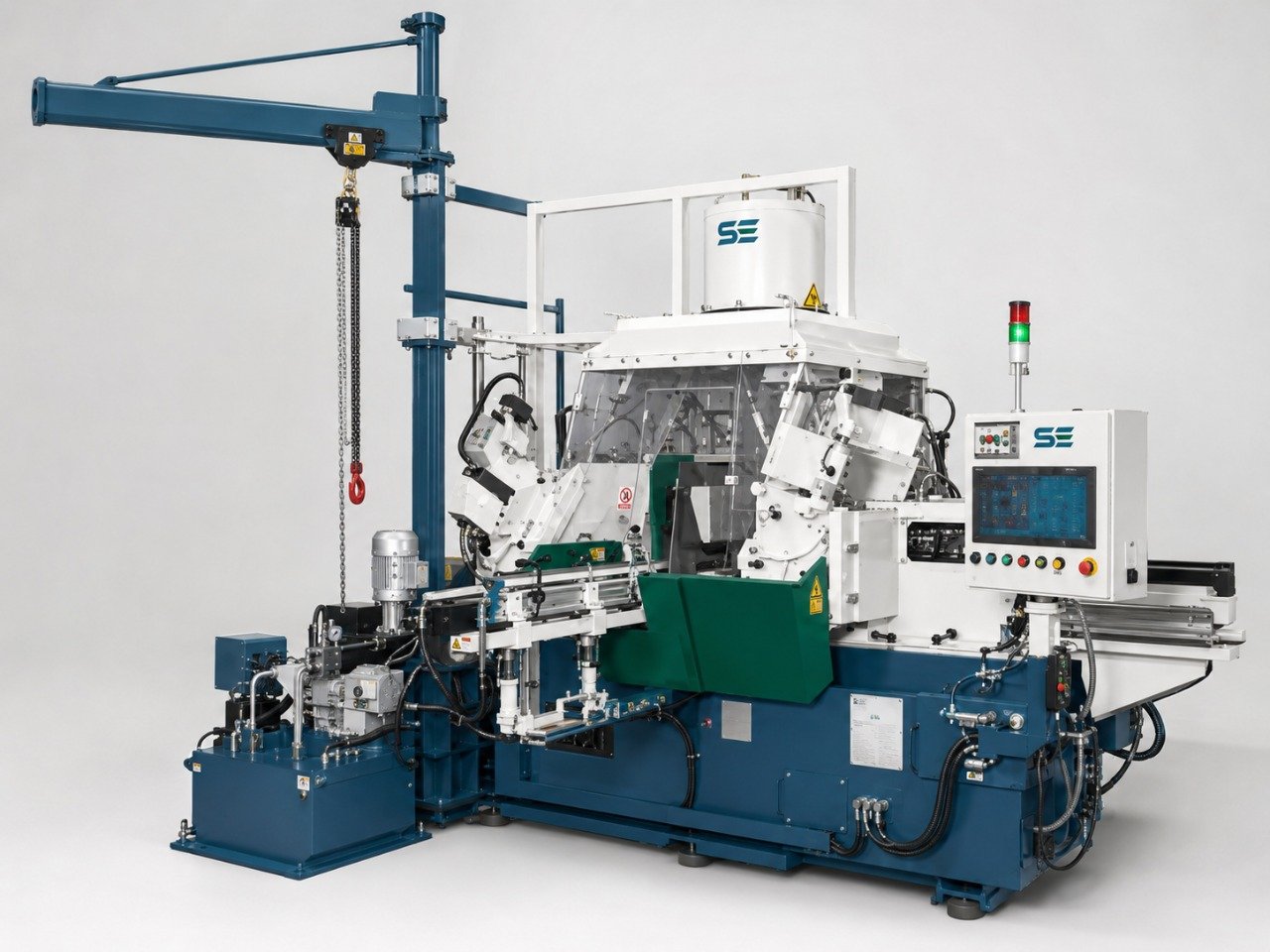

| Capacities | 3-20” Grinder |
| The Raven | |
| Work Dia. Range | |
| Standard Work rest Low thru feed work rest (optional) | Ø 12 to 150 mm L = 500 mm |
| Grinding Wheel | |
| Dia. x Width x Bore Minimum Dia. Max. Wheel surface speed, (New wheel) Optional Surface Speed | 610 x 508 x 305 mm 432 mm 45 m/sec (9000 sfpm) |
| Regulating Wheel | |
| Dia. x Width x Bore Minimum dia. Speed range | 355 x 508 x 152.4 mm 267 mm Infinitely variable 12 to 300 rpm |
| Drive Motor | |
| Grd. wheel standard Optional Reg. wheel Hyd. unit | 50 Hp (37 KW), 60 Hp (45 KW), 75 Hp (56 KW)6 Nm Servo Motor1.5 Hp (1.1 KW) |
| Coolant Equipment | |
| Tank Capacity Pump Capacity Motor | Optional as required |
| General Data | |
| Floor Space ( L x W x H) | 4000 x 2100 x 1800 mm |
| Approx. Weight of basic grinder. | 9750 kgs |
